need help with autowatering
- Thread starter xox
- Start date
interesting i thought that ball inside needed gravity to close itself
Thurston
Howell III

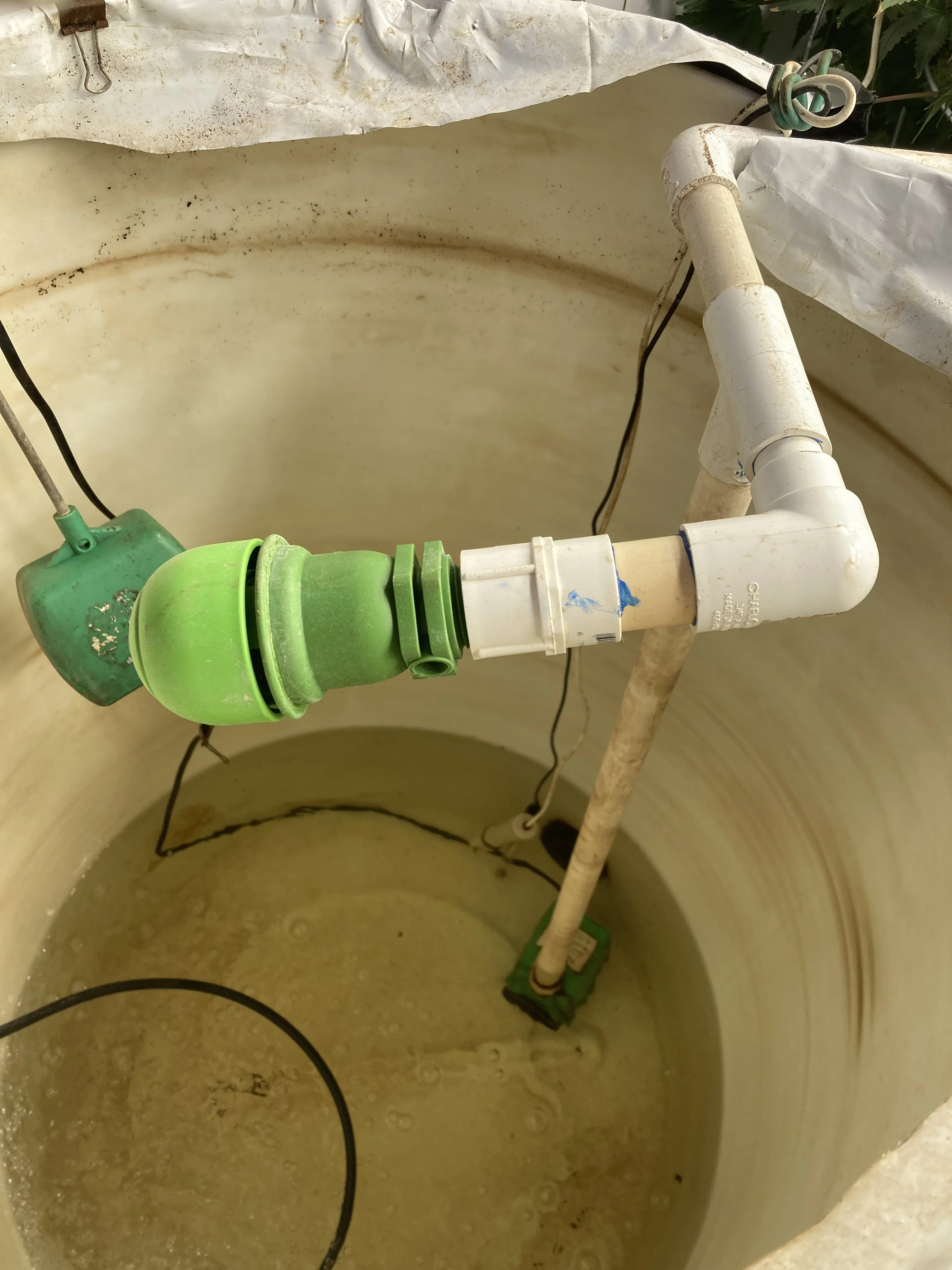

Picture this since I can’t draw; 55 gallon poly drum (reservoir) filled to 4-5 inches from top, 800gph pump at bottom with 3/4 pvc to tee that sits in the air space above water/feed, one leg of tee to air check valve and other leg out to distribution manifold. When pump is activated the valve may spit some water as it actuates, which just drops back into reservoir. The internal ball just needs to drop to break siphon. You can unscrew the top to see how it works. Since it is located at a high point in the system, there is no upstream flow from gravity feed to keep valve (ball up) seated. In this setup the downstream flow assist in breaking siphon.
Gravity opens the valve to air flow, breaking siphon, ball in up position close off air.
I’ve edited this post 4 times trying to explain. I am high, please excuse my broken explanation.
Gravity opens the valve to air flow, breaking siphon, ball in up position close off air.
I’ve edited this post 4 times trying to explain. I am high, please excuse my broken explanation.
Last edited:
cool thanks for showing me pictures, that brings me to my next question what are you guys using for garbage cans / reservoirs i was scoping out this one but shipping is expensive : /
www.uline.ca
Uline Trash Can - 44 Gallon, White H-3688W - ULINE
Industrial strength. Uline value. Recommended for offices, schools and your outdoor events. All plastic. Won't dent or crack. Built-in handles for easy lifting. Nestable when empty. USDA compliant. NSF certified. Lid sold separately. ULINE offers over 45,000 boxes, plastic poly bags, mailing...
www.uline.ca

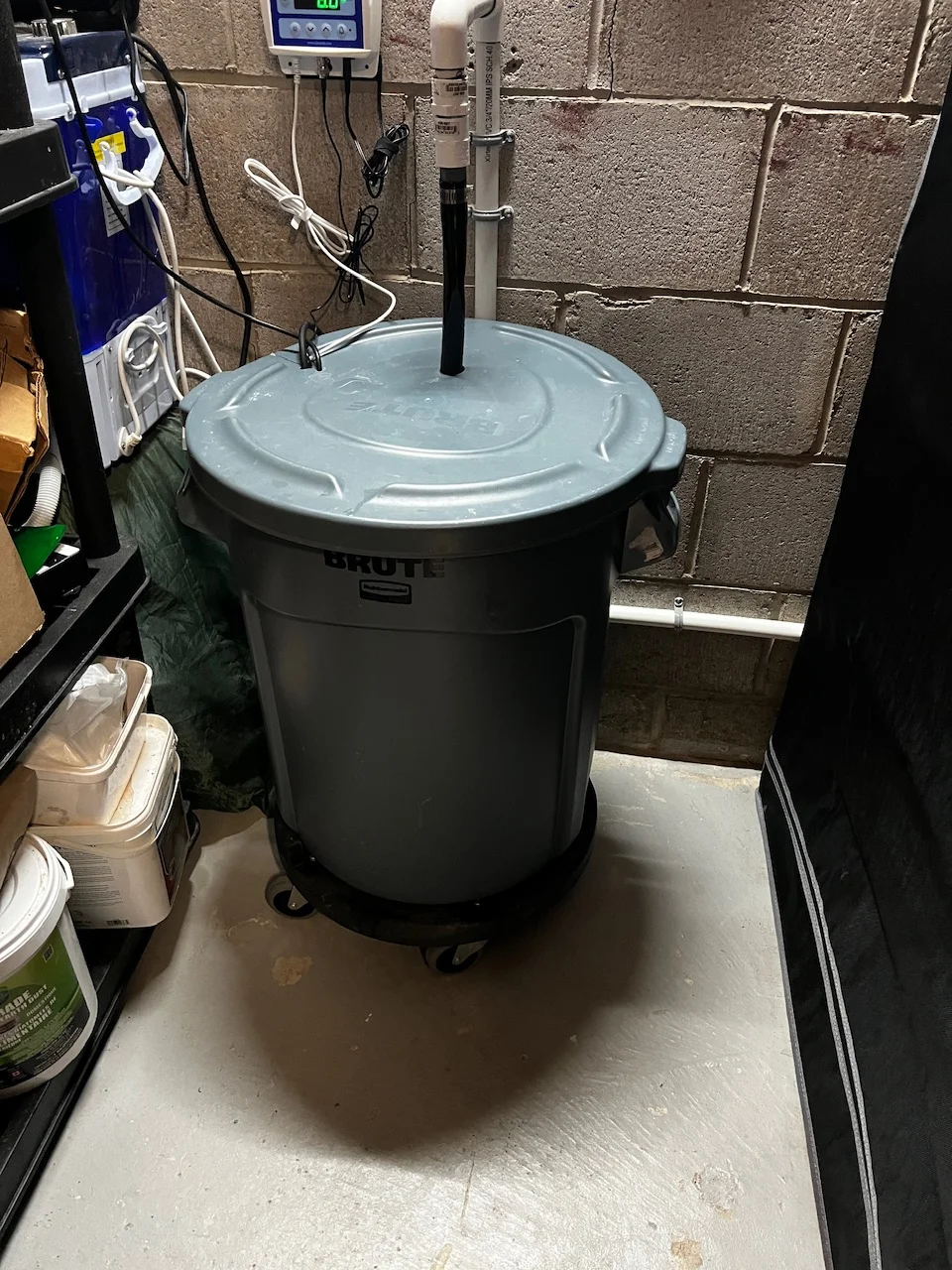

I use a Rubbermaid Brute trash can
